Predator 22hp Installation Kit for 2010+ EZ-GO TXT

This is the most cost-effective 22HP Harbor Freight Predator V-Twin engine conversion kit available for your 2010+ EZ-GO TXT golf cart! Significantly increase your power and torque at a very affordable price.

4"-6" Lift Kit Required!

Need a lift kit? Click here.

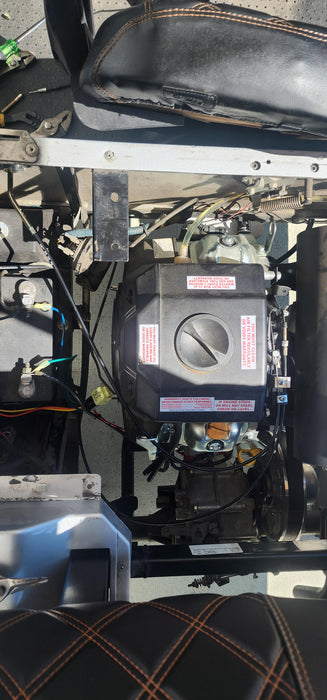

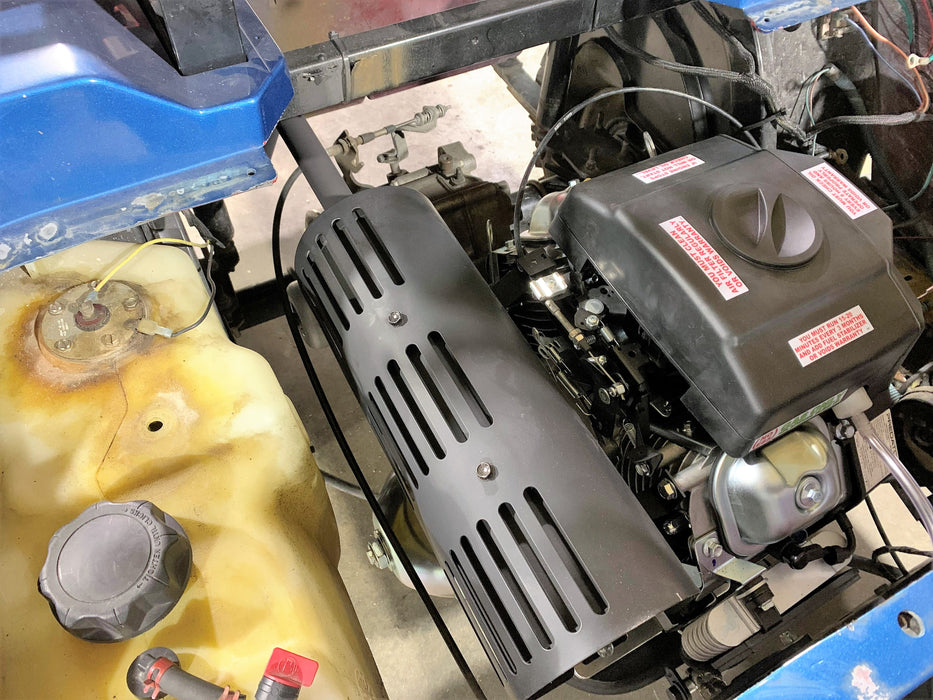

This is the complete V-Twin conversion kit for your 2010+ EZ-GO TXT. Specifically engineered for those who don't have the time or machinery to fabricate their own. Simply remove your old engine and bolt in your new HF Predator 670cc!

Kit Includes:

• Adjustable Engine Cradle w/Front Support
• Adjustable Motor Plate
• Heavy Duty Drive Clutch for 1" Shaft Engine

• HD Secondary TEAM Clutch w/ 1-3/16" Belt Upgrade (Optional + $360)
• Double Cogged Extended Drive Belt
• Engine Hold Downs

• 3ft Clear Fuel Line
• Tailpipe for OEM Muffler w/Clamp (Material is Raw Uncoated Steel)
• Mounting Hardware
• Predator Cable Clamp
• **Engine Sold Separately...buy directly from Harbor Freight**

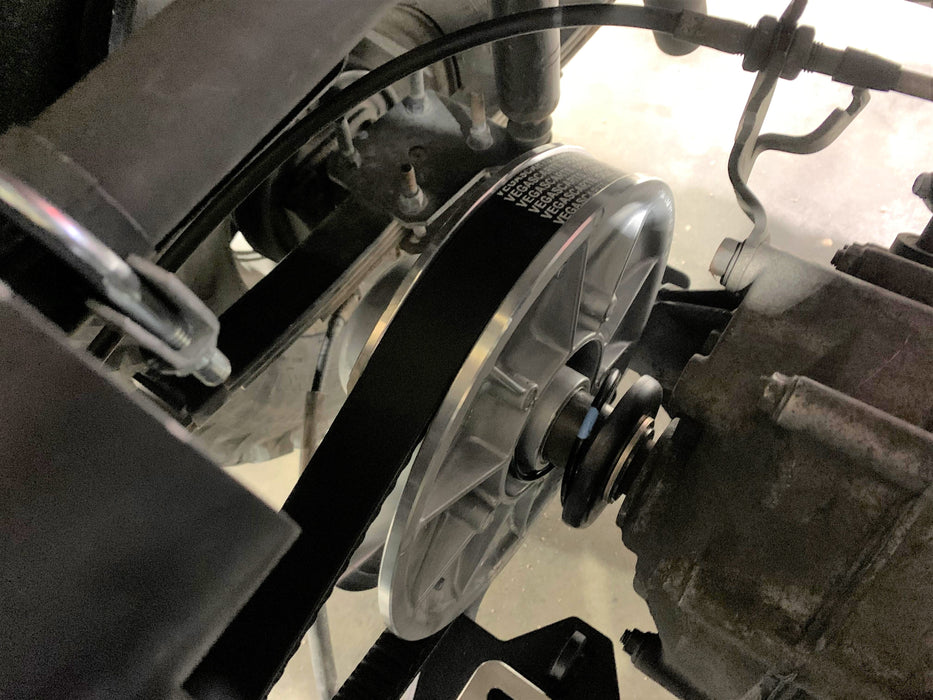

DRIVEN CLUTCH OPTION: Certain carts came from the factory with a TEAM "Rapid Response" driven clutch. If you are lucky enough to have a cart with this clutch, you can save $360 on this kit. The easiest way is to determine this is to measure the clutch opening. If you driven clutch measures at least 1.2" at the top of the opening for the belt...you dont need this option and can save $360. Heres a picture of what the clutch should look like:

(HAS NOT BEEN TESTED ON RXV OR VALOR MODELS)

Weight : 45 lbs

Dimensions : 32x18x8
